2JP(B)-22 Mining Electric Rake mainly used for metal mines, coal mines and other mines underground or open ore handling and filling operations can also be used for small inclination slope scraping,
Contact Us Product Center
2JP(B)-22 Mining Electric Rake mainly used for metal mines, coal mines and other mines underground or open ore handling and filling operations can also be used for small inclination slope scraping, but not for lifting equipment. Parallel type Electric rake with PB series scraper loader have the same function host.

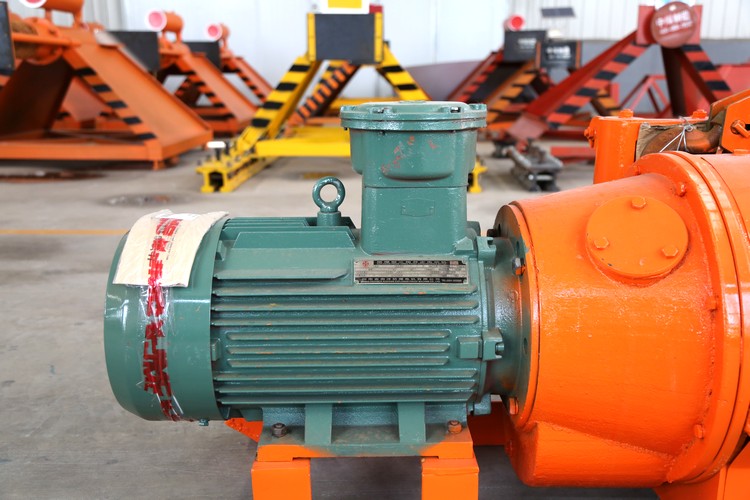

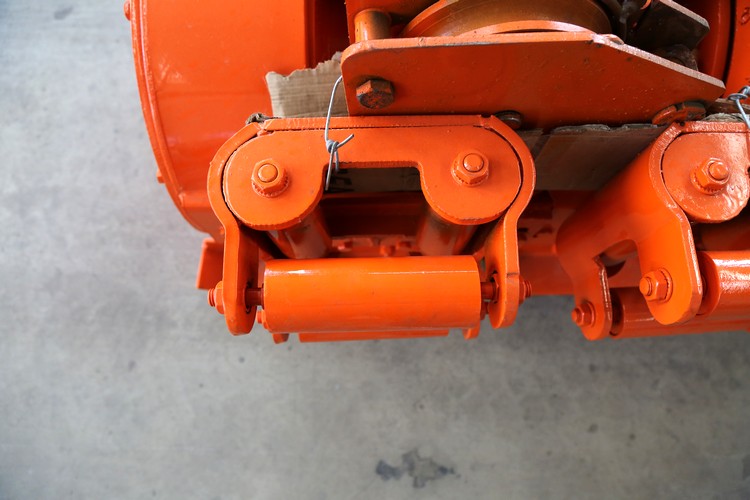

Main components of 2JP(B)-22 Mining Electric Rake are deceleration devices, the main roller, sub roll, controls, rope guider and motor. These components are mounted both inside and outside of housing. The housing is a better steel parts, not only have protection and supporting, but also bear the full load. It is bolted to two skids connected with foundation .
Structure of 2JP(B)-22 Mining Electric Rake
|
项目 |
unit |
Model |
|||||
|
2JPB-7.5 |
2JPB-15 |
2JPB-22 |
2JPB-30 |
2JPB-55 |
|||
|
2JP-7.5 |
2JP-15 |
2JP-22 |
2JP-30 |
2JP-55 |
|||
|
主钢丝绳平均拉力不少于Main wire rope Min. tension |
N |
8000 |
14000 |
20000 |
275000 |
44000 |
|
|
平均速度 |
Main wire rope |
±5%m/s |
1.0 |
1.10 |
1.20 |
1.20 |
1.20 |
|
Secondary wire rope |
1.0 |
1.50 |
1.50 |
1.60 |
1.80 |
||
|
钢丝绳直径 |
Main wire rope |
mm |
9.3 |
12.5 |
14.0 |
15.5 |
18.5 |
|
Secondary wire rope |
9.3 |
11.0 |
11.0 |
14.0 |
16.0 |
||
|
卷筒 |
Dia. |
mm |
205 |
225 |
280 |
280 |
350 |
|
Rim diameter |
mm |
350 |
435 |
510 |
510 |
625 |
|
|
Width |
mm |
80 |
125 |
160 |
160 |
180 |
|
|
容绳量 |
Main Drum |
m |
45 |
80 |
80 |
80 |
100 |
|
Secondary Drum |
m |
45 |
100 |
100 |
110 |
130 |
|
|
电动机 |
Model |
/ |
YBK?-132M-4 |
YBK?-160L-4 |
YBK?-180L-4 |
YBK?-200L-4 |
YBK?-250M-4 |
|
/ |
Y?-132M-4 |
Y?-160L-4 |
Y?-180L-4 |
Y?-200L-4 |
Y?-250M-4 |
||
|
Power |
KW |
7.5 |
15 |
22 |
30 |
55 |
|
|
Rotating speed |
r/min |
1440 |
1460 |
1470 |
1470 |
1470 |
|
|
外形尺寸 |
L |
mm |
1210 |
1525 |
1600 |
1650 |
2070 |
|
W |
mm |
565 |
660 |
730 |
820 |
1010 |
|
|
H |
mm |
490 |
620 |
640 |
700 |
890 |
|
|
Total weight (excluding skips and pulleys) |
kg |
390 |
660 |
980 |
1155 |
2125 |
|
