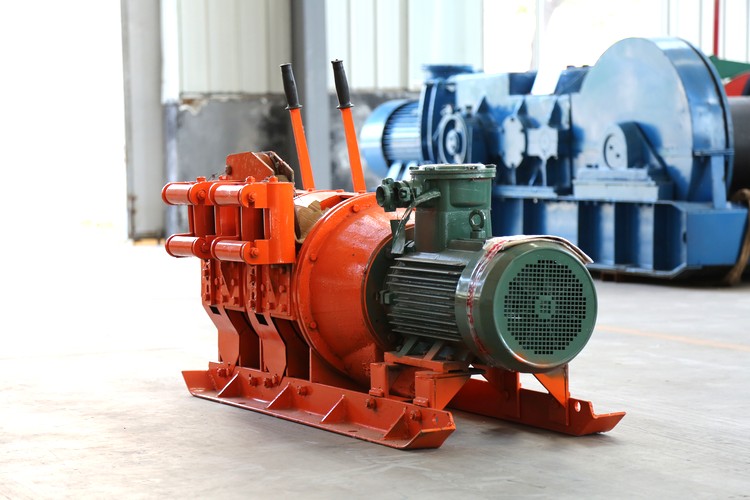

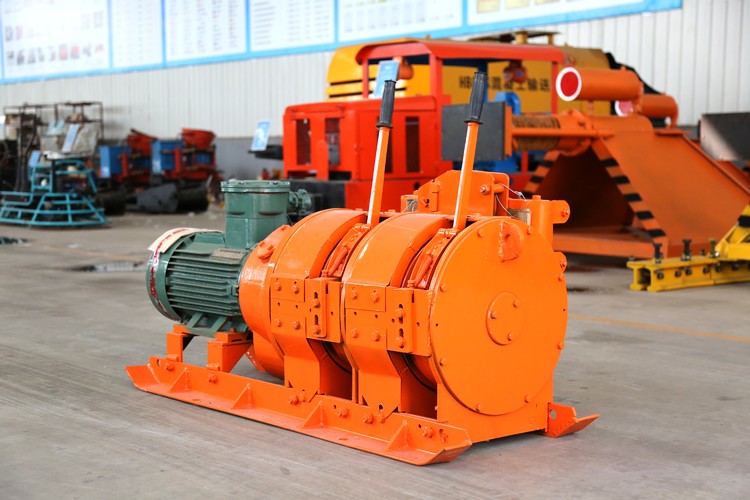

2JP(B)-7.5 Mining Electric Scraper Winch with Cast Steel Scraper is mainly used for the level of the shipment, also can be used for angle not more than 44o, can be used as the slope lifting equipment.
Contact Us Product Center
2JPB Scraper winch is mainly used for underground coal or metal mines handling and filling operations. It is mainly used for horizontal haulage or slopes with small dip angles and cannot be used as lifting equipment. The worker can operate by hand next to the winch, or it can be operated with a button from a few meters to several tens of meters from the winch.
1.CE SGS MA TUV BV ISO Certificated Manufacturer
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
JPB series Mining Scraper Winch is mainly used for metallic ore and other mines pit or outdoor ore handling or fill work! Mainly used for the level of the shipment, also can be used for angle not more than 44o, can be used as the slope lifting equipment. The driver can winch by hand in the control.
2JPB Scraper winch is mainly used for underground coal or metal mines handling and filling operations. It is mainly used for horizontal haulage or slopes with small dip angles and cannot be used as lifting equipment. The worker can operate by hand next to the winch, or it can be operated with a button from a few meters to several tens of meters from the winch.
Application of 2JP(B)-7.5 Mining Electric Scraper Winch with Cast Steel Scraper
|
项目 |
unit |
Model |
|||||
|
2JPB-7.5 |
2JPB-15 |
2JPB-22 |
2JPB-30 |
2JPB-55 |
|||
|
2JP-7.5 |
2JP-15 |
2JP-22 |
2JP-30 |
2JP-55 |
|||
|
主钢丝绳平均拉力不少于 Main wire rope Min. tension |
N |
8000 |
14000 |
20000 |
275000 |
44000 |
|
|
平均速度 |
Main wire rope |
±5%m/s |
1.0 |
1.10 |
1.20 |
1.20 |
1.20 |
|
Secondary wire rope |
1.0 |
1.50 |
1.50 |
1.60 |
1.80 |
||
|
钢丝绳直径 |
Main wire rope |
mm |
9.3 |
12.5 |
14.0 |
15.5 |
18.5 |
|
Secondary wire rope |
9.3 |
11.0 |
11.0 |
14.0 |
16.0 |
||
|
卷筒 |
Dia. |
mm |
205 |
225 |
280 |
280 |
350 |
|
Rim diameter |
mm |
350 |
435 |
510 |
510 |
625 |
|
|
Width |
mm |
80 |
125 |
160 |
160 |
180 |
|
|
容绳量 |
Main Drum |
m |
45 |
80 |
80 |
80 |
100 |
|
Secondary Drum |
m |
45 |
100 |
100 |
110 |
130 |
|
|
电动机 |
Model |
/ |
YBK-132M-4 |
YBK-160L-4 |
YBK-180L-4 |
YBK-200L-4 |
YBK-250M-4 |
|
/ |
Y-132M-4 |
Y-160L-4 |
Y-180L-4 |
Y-200L-4 |
Y-250M-4 |
||
|
Power |
KW |
7.5 |
15 |
22 |
30 |
55 |
|
|
Rotating speed |
r/min |
1440 |
1460 |
1470 |
1470 |
1470 |
|
|
外形尺寸 |
L |
mm |
1210 |
1525 |
1600 |
1650 |
2070 |
|
W |
mm |
565 |
660 |
730 |
820 |
1010 |
|
|
H |
mm |
490 |
620 |
640 |
700 |
890 |
|
|
Total weight (excluding skips and pulleys) |
kg |
390 |
660 |
980 |
1155 |
2125 |
|
