2JP15 scraper winch is mainly used for ore handling and filling operations in underground or open pit of metal mines and other mines. It is mainly used for horizontal transport and can also be used fo
Contact Us Product Center

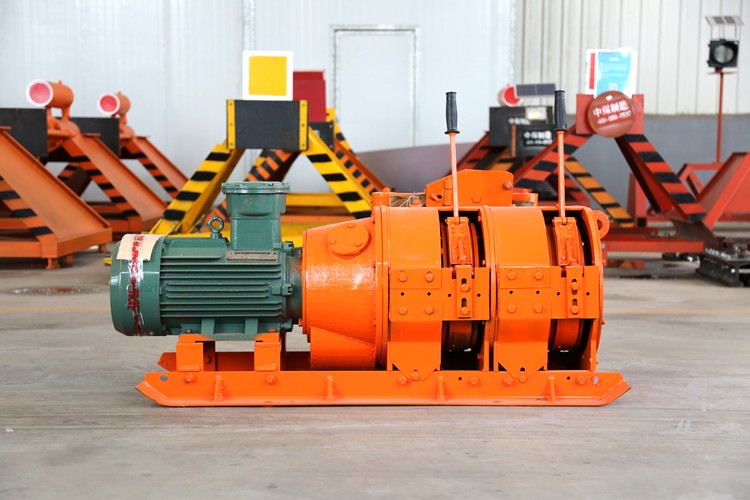

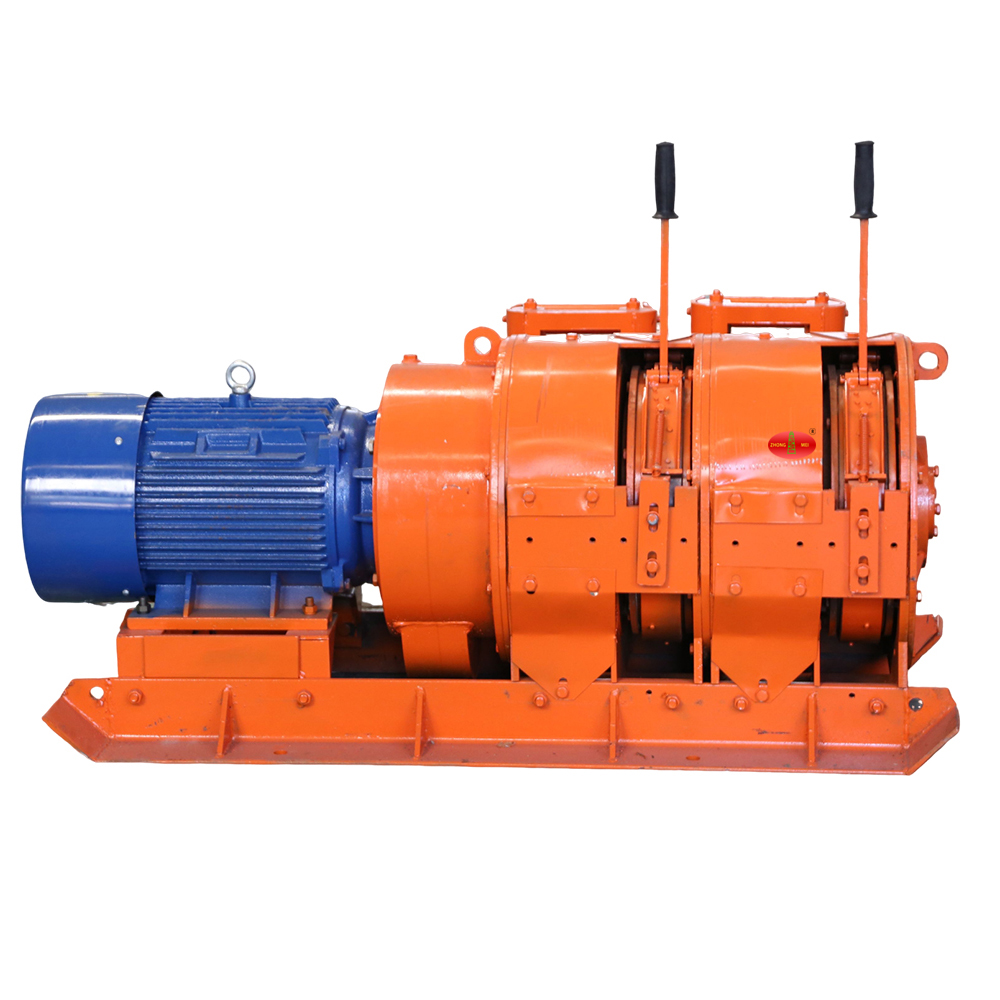

2JP15 Underground Mining Scraper Winch is mainly used for ore handling and filling operations in underground or open pit of metal mines and other mines. It is mainly used for horizontal transport and can also be used for slope transport with horizontal or inclined angle of not more than 44°. It cannot be used as lifting equipment. The driver can operate by hand next to the winch, or use the button to perform distance operation from a few meters to several tens of meters from the winch.
MAIN PARAMETER OF|
Model |
2JP15 |
|
The average tension of the main wire rope is not less than(KN) |
14 |
|
Average speed±5% m/s |
Main wire rope:1.1 Secondary wire rope:1.5 |
|
Wire rope diameter mm |
Main wire rope:12.5 Secondary wire rope:11.0 |
|
Reel mm |
Diameter:225 Rim diameter: 435 Width: 125 |
|
Capacity m |
Main reel: 80 Secondary reel: 100 |
|
Motor |
Model:YB160L-4 Power kw : 15 Speed r/min : 1460 |
